P2500HTL Air Dryer
canadian puregas equipment limited
P2500HTL Air Dryer
Scroll down for specifications

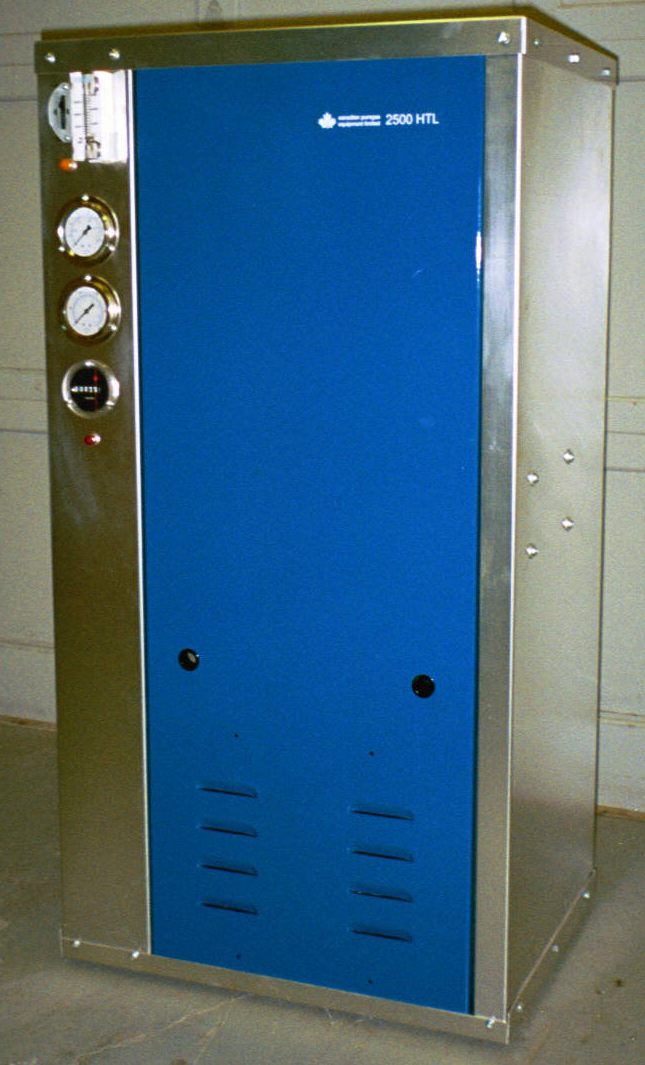

MODEL P2500HTL
Output Capacity: Normal: 2500SCFD Maximum: 4200SCFD Ambient Operating 35o F.- 120o F. Temperature Range: (1.7 deg. C.- 49 deg. C.) Power Requirements: 115v, 1 Phase, 60Hz, 16 Amp Electrical Options Other voltages Available Available for World Also available in 50 Hz at reduced Wide Applications capacity Dimensions: 48" H x 25" W x 22" D Shipping Weight: 220 lbs. Outlet Pressure Range: Standard: 0-15 psig (adjustable) Optional: below 2.5 psig Outlet Humidity Level: Less than 2% R.H. @ 70 degrees F. Noise Level: 56 dBA at 3 feet Compressor Type: 3/4 HP. Oiless Dryer Type: HEATLESS DESSICANT Alarms: Discreet or Common -High Humidity -High/Low Output Pressure -Power Failure
MODEL P5000HTL
Output Capacity: Normal: 5000SCFD Maximum: 8400SCFD Ambient Operating 35o F.- 120o F. Temperature Range: (1.7 deg. C.- 49 deg. C.) Power Requirements: 208v, 1 Phase, 60Hz, 16 Amp Electrical Options Other voltages Available Available for World Also available in 50 Hz at reduced Wide Applications capacity Dimensions: 48" H x 30.5" W x 22" D Shipping Weight: 350 lbs. Outlet Pressure Range: Standard: 0-15 psig (adjustable) Optional: below 2.5 psig Outlet Humidity Level: Less than 2% R.H. @ 70 degrees F. Noise Level: 56 dBA at 3 feet Compressor Type: (2) 3/4 HP. Oiless Dryer Type: HEATLESS DESSICANT Alarms: Discreet or Common -High Humidity -High/Low Output Pressure -Power Failure
MODEL P10000HR
Output Capacity: Normal: 10000SCFD Maximum: 10000SCFD Ambient Operating 35o F.- 120o F. Temperature Range: (1.7 deg. C.- 49 deg. C.) Power Requirements: 208v, 1 Phase, 60Hz, 16 Amp Electrical Options Other voltages Available Available for World Also available in 50 Hz at reduced Wide Applications capacity Dimensions: 48" H x 25" W x 22" D Shipping Weight: 350 lbs. Outlet Pressure Range: Standard: 0-15 psig (adjustable) Optional: below 2.5 psig Outlet Humidity Level: Less than 2% R.H. @ 70 degrees F. Noise Level: 56 dBA at 3 feet Compressor Type: (2) 3/4 HP. Oiless Dryer Type: CALORIC REACTIVATED DESSICANT Alarms: Discreet or Common -High Humidity -High/Low Output Pressure -Power Failure
MODEL P4200E Emergency Dryer
Output Capacity: Normal: 2600SCFD Maximum: 4200SCFD Ambient Operating 35o F.- 120o F. Temperature Range: (1.7 deg. C.- 49 deg. C.) Power Requirements: 115v, 1 Phase, 60Hz, 16 Amp Electrical Options Other voltages Available Available for World Also available in 50 Hz at reduced Wide Applications capacity Dimensions: 23" H x 22" W x 14" D Shipping Weight: 110 lbs. Outlet Pressure Range: Standard: 0-15 psig (adjustable) Optional: below 2.5 psig Outlet Humidity Level: Less than 2% R.H. @ 70 degrees F. Noise Level: 56 dBA at 3 feet Compressor Type: 3/4 HP. Oiless Dryer Type: HEATLESS DESSICANT Alarms: -High Humidity -High/Low Output Pressure
